FF17 1:10 Front Wheel Drive Touring Car Kit with ESC/Motor Bundle D-05-VBC-CK27

Sold out.

SHIPPING NOW!!!

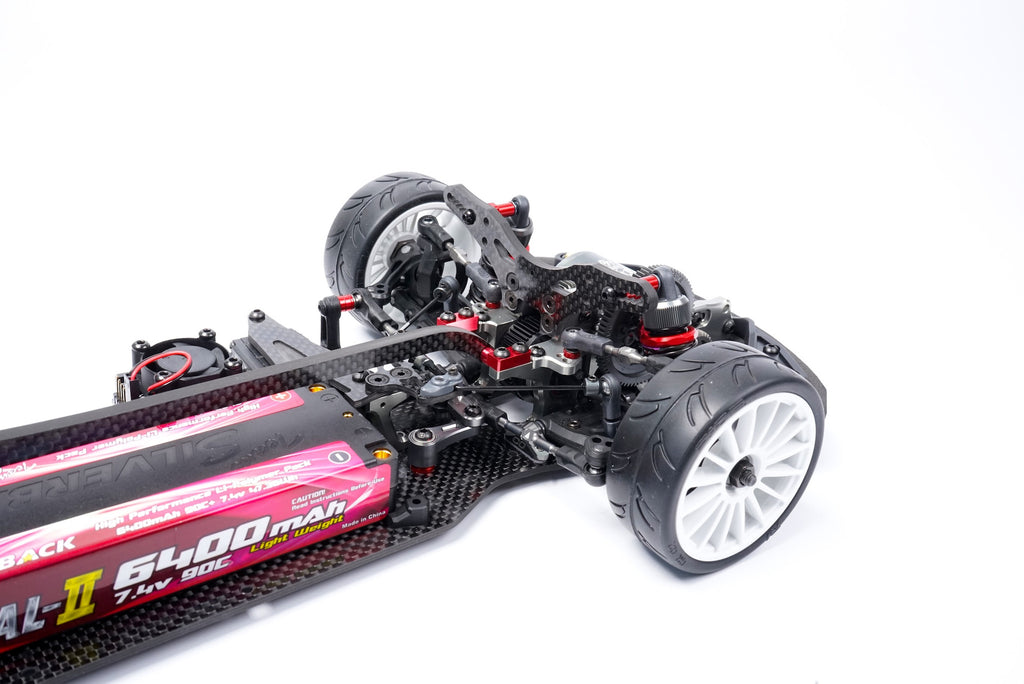

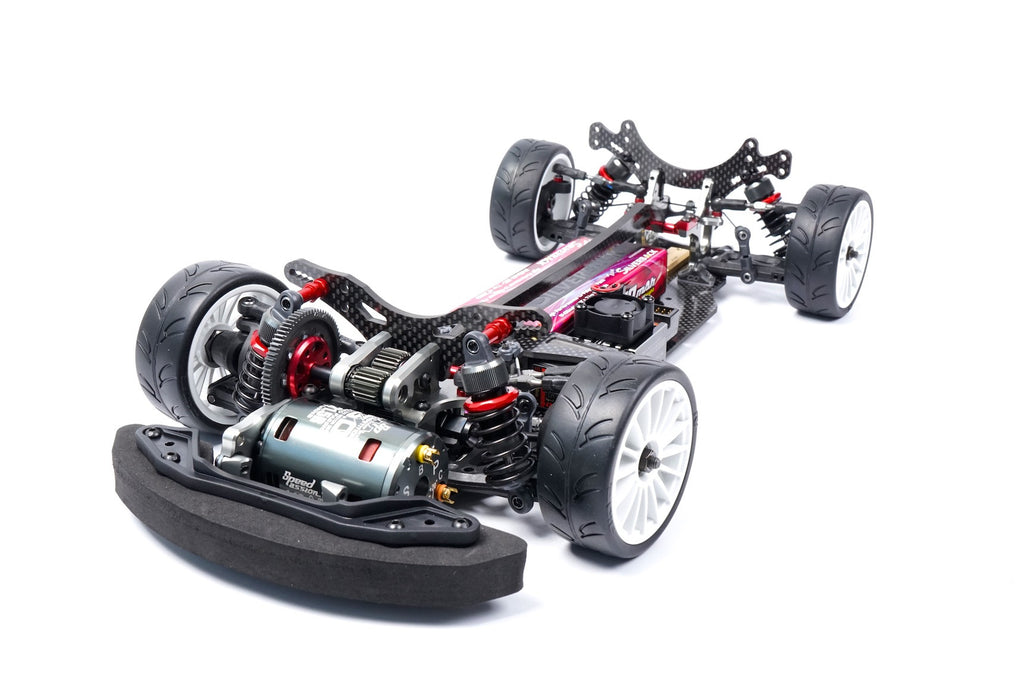

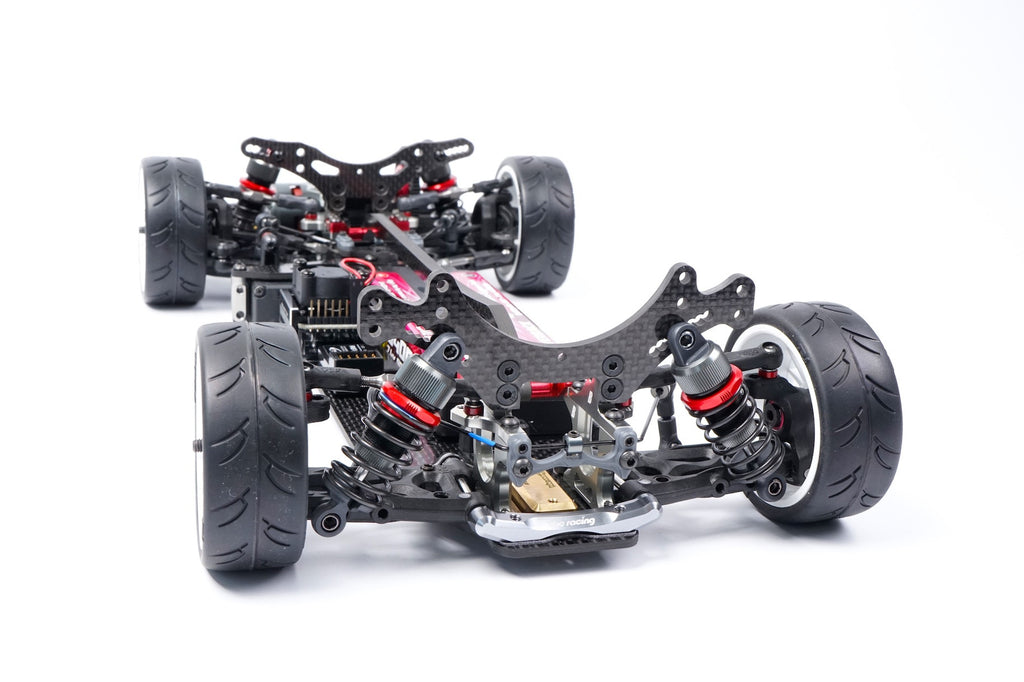

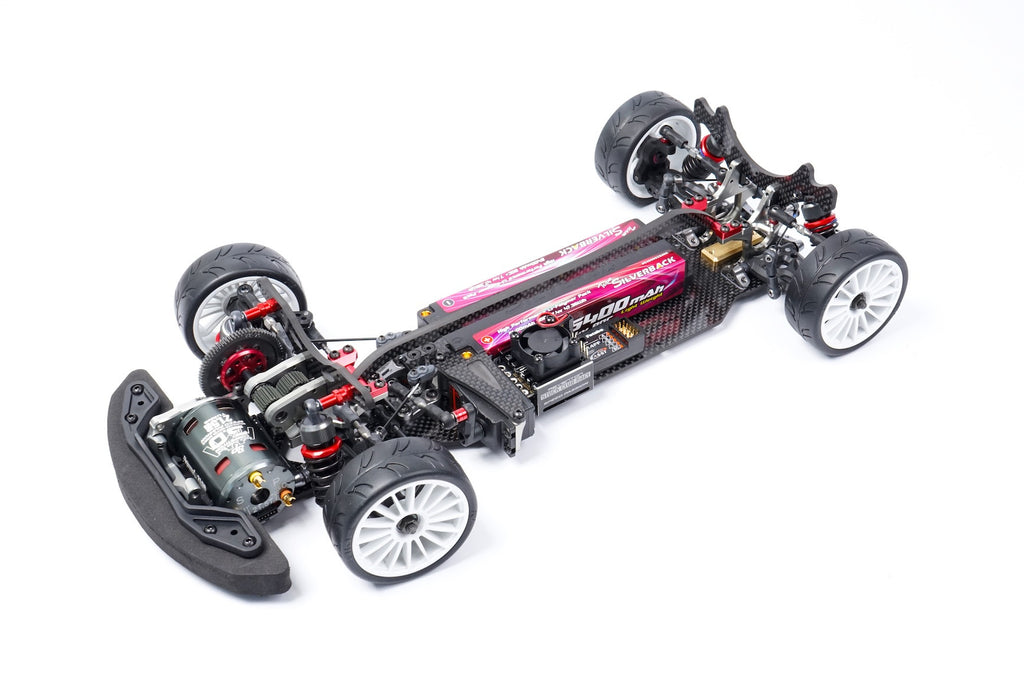

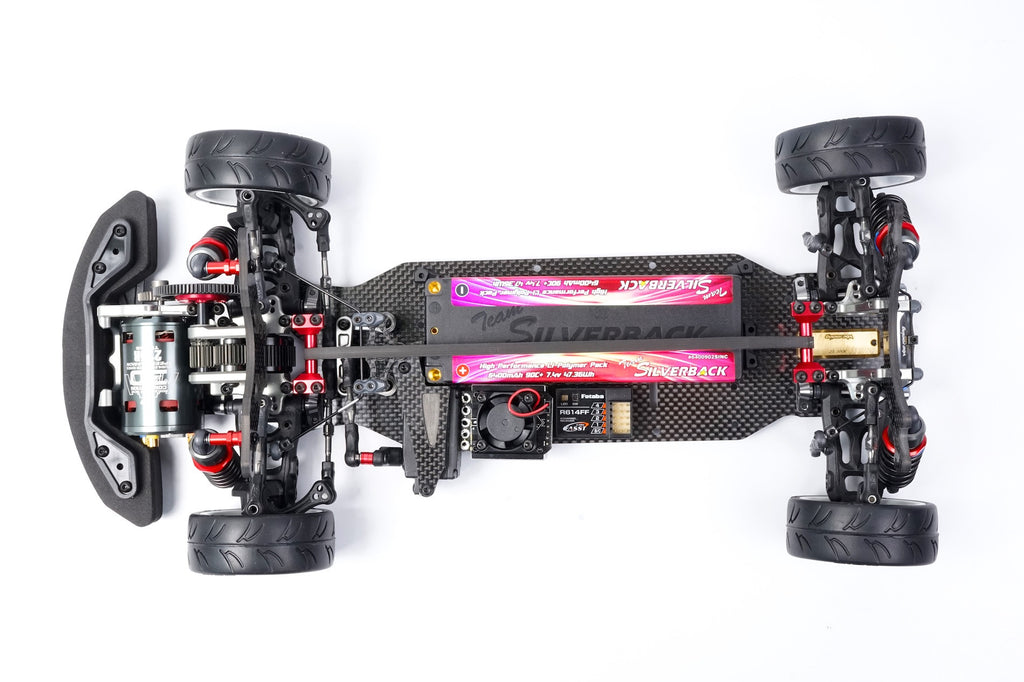

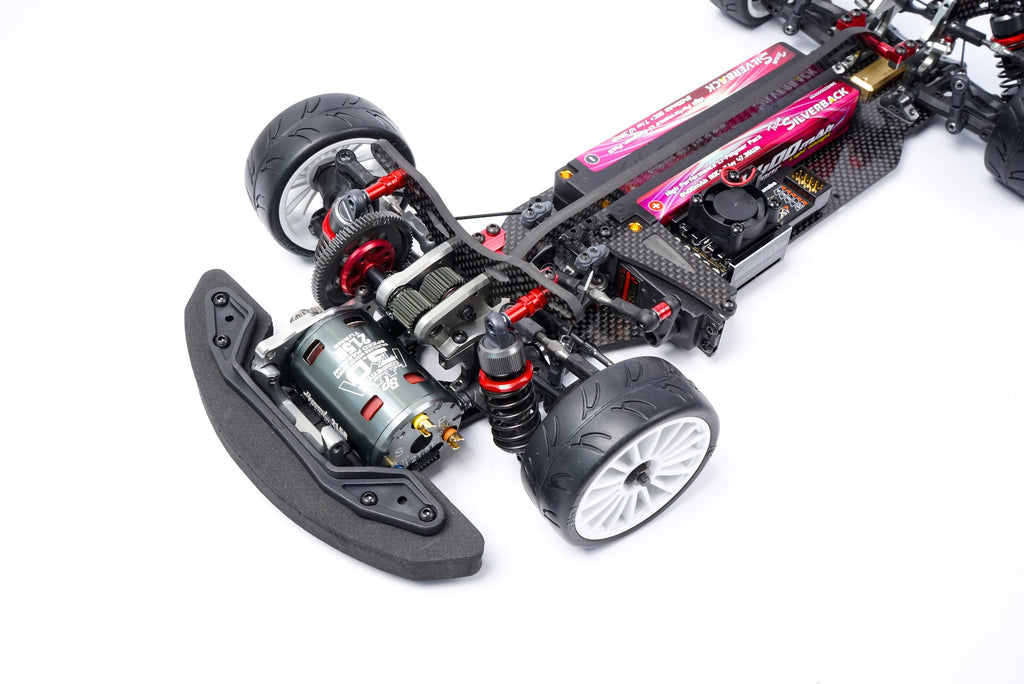

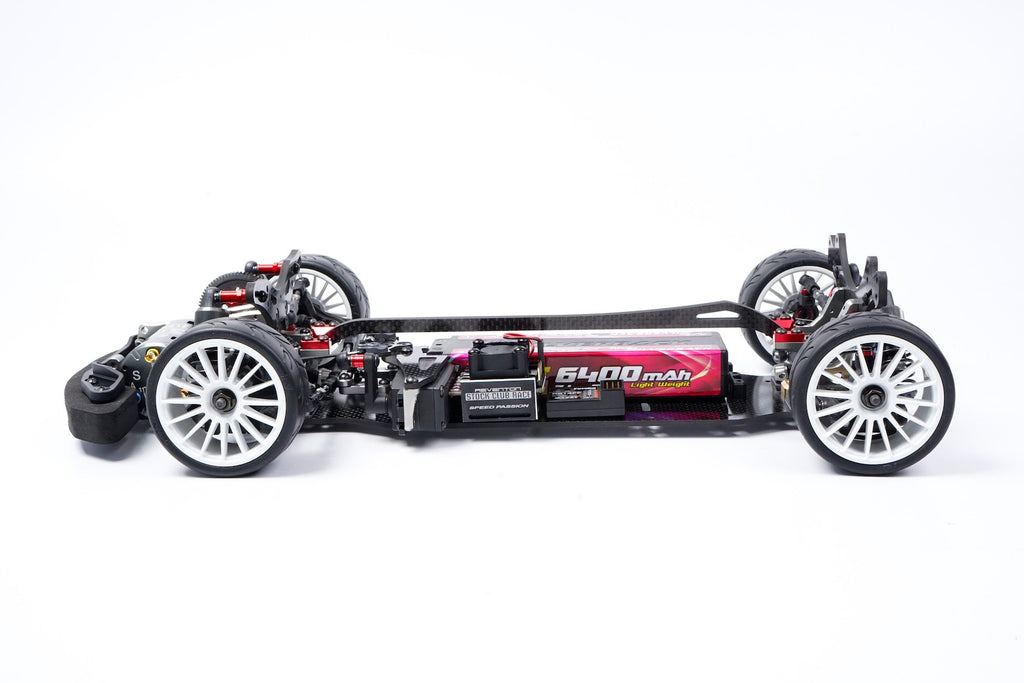

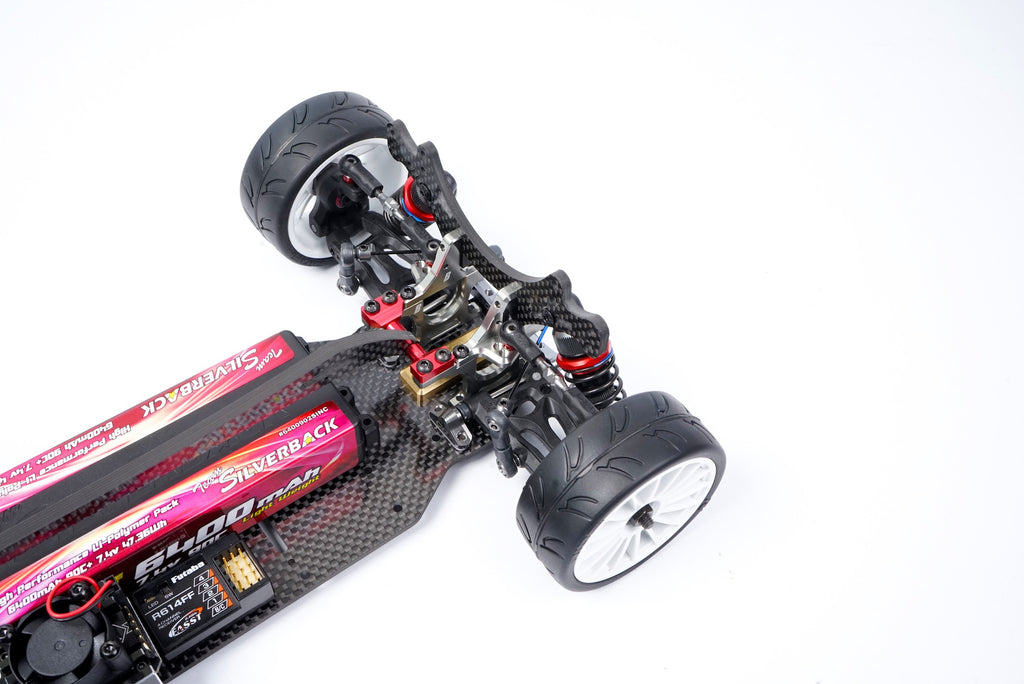

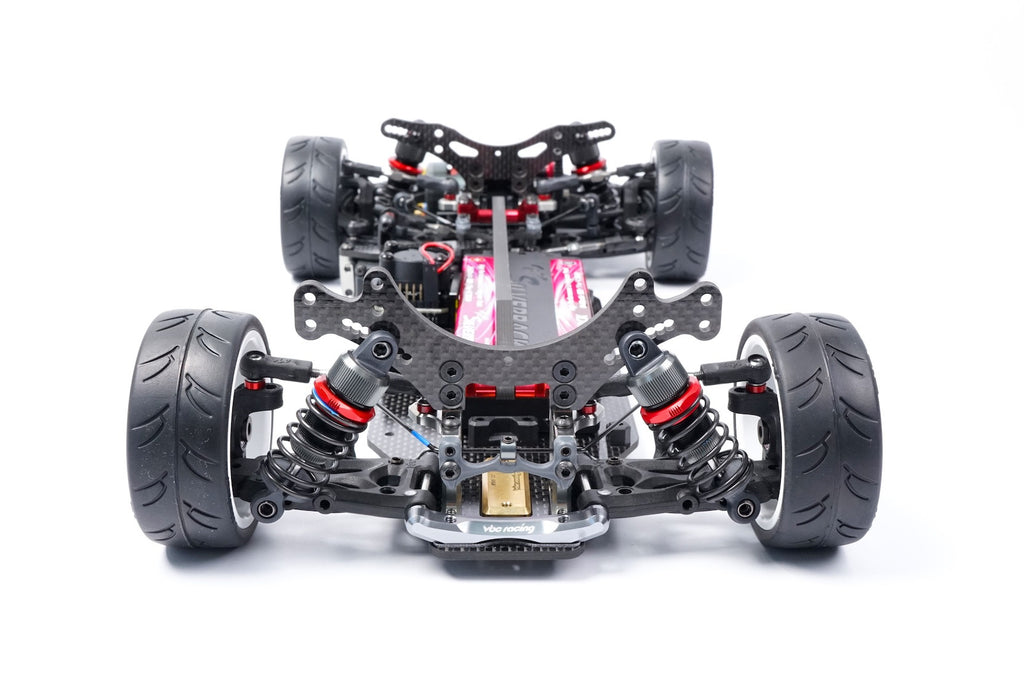

Our new Front Wheel Drive touring car FF17. The FF17 has a lot of updates from our last version 3 years ago. It features: -

- Full aluminium gears driver train with aluminium housing gear diff
- All new steering system with new steering geometry
- All new shocks for exceptionally smooth operations
- Designed for transverse or standard battery layout. Suitable for standard or shorty packs. - Revolutionary 5mm vertical full carbon upper deck for exceptional car handling
- Full Composite X Silver steering knuckles, c-hubs, front/rear A-arms, rear hubs
- New chassis design for the vertical upper deck and rear chassis cut out for optional LCG brass weight
- 100% Carbon fiber chassis, upper deck, front/rear shock towers and floating servo mount
- All 7075 Aircraft grade aluminium parts
- Front and rear sway bars included

*Battery, wheels, tires are not included

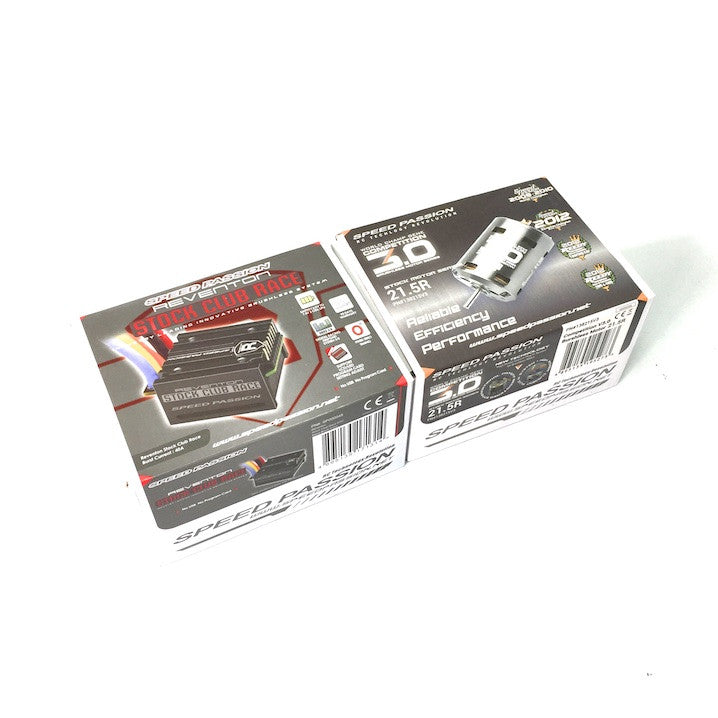

This is a bundle version with the Speed Passion Stock Club Race ESC SP00048 and Speed Passion Competition V3.0 series 21.5R Brushless Motor 138215V3

Speed Passion Stock Club Race ESC SP00048 Specifications

Length: 33mm
Width: 33mm
height: 19mm
Continuous/Burst Current:40A/250A
Resistance: 0.0005 ohm
Battery: 4-9 Cell Nickle/2 Cell LiPo/2-3 Cell LiFe
BEC Output: 6.0V/BEC 2A
ESC Type: Sensored/Sensorless
Motor Type: Sensored/Sensorless
Motor Limit: 9.5T Max @ 7.2/7.4V
ESC Fan: 25mm
Supports Wi-Fi Module Software: Yes (optional WiFi Module sold separately
Supports Smart LED Program Card: Yes (optional Smart LED Program card sold separately)
Supports 2.4G held-set for program setting: No
Supports Bluetooth Module Setting: Yes (optional Bluetooth Module sold separately
Racing Program Setting: Stock 0 "Zero Timing Software"



Speed Passion Competition V3.0 series 21.5R Brushless Motor 138215V3 Specifications

Design: Sensored
Size: 540
Turns: 21.5T

Stand alone car kit version also available http://www.vbcracing.com/collections/vbc-racing-upgrade-kits/products/ff17-1-10-front-wheel-drive-touring-car-kit-d-05-vbc-ck26
